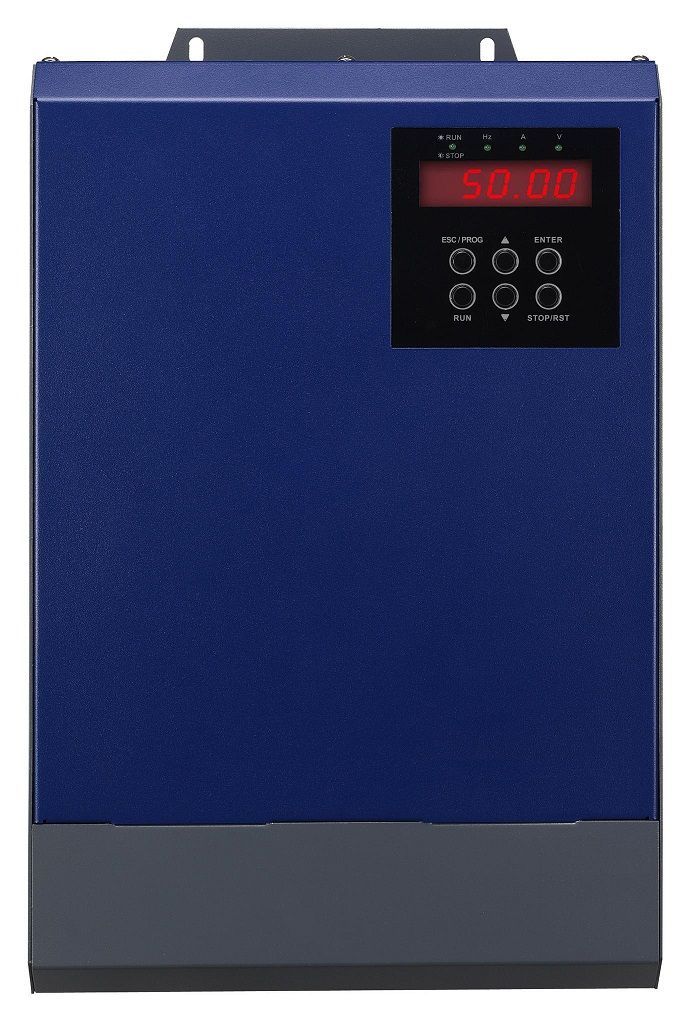

Aspire Solar Pump Inverter (7.5Kw)
₨74,000.00
or 4 interest-free installments by Afterpay.
The 3-phase in, 3-phase out solar pump inverter is environmentally friendly with a long lifetime and lower maintenance costs, built in MPPT to ensure you to get the best output power and optimize the performance of water pump solar Inverter along the day as it starts and stops automatically based on the intensity of solar radiation.
Guaranteed safe checkout
Free Delivery 30 Day Trial Free Returns
Need Help? Call Us +1 255 854 55 26
Monday - Friday 9:00 - 17:00
Monday - Friday 9:00 - 17:00
Description
Description
Main Features
- Built-in MPPT solar charger
- Supports three-phase asynchronous motor
- Built-in full protection and self-diagnosis
- Soft start function prevents water hammer effect and extends system lifecycle
- Comprehensive LEDs and display screen for real-time system status
- Remote monitoring through RS-485
| Model | Aspire 2.2KW | Aspire 7.5KW | Aspire 11KW |
| PHASE | 3-phase in/ 3-phase out | ||
| MAXIMUM PV ARRAY POWER | 3500 W | 12000 W | 17600 W |
| RATED OUTPUT POWER | 2200 W | 7500 W | 11000 W |
| PV INPUT (DC) | |||
| Maximum DC Voltage | 800 VDC | ||
| Start-up Voltage | 350 VDC | ||
| MPPT Voltage Range | 500~600 VDC | ||
| Number of MPP Trackers | 1 | ||
| OUTPUT | |||
| Nominal Voltage | 3 x 380/400/415/440 VAC | ||
| Efficiency | > 97% | ||
| Output Current | 5.1 A | 17 A | 26 A |
| Motor Type | Three-phase asynchronous motor | ||
| Frequency Precision | ±0.2% | ||
| PROTECTION | |||
| Full Protection | Over-voltage, under-voltage, over-current, surge, over-temperature, short circuit protection | ||
| PHYSICAL | |||
| Dimension, D x W x H (mm) | 110 x 230 x 330 | ||
| Net Weight (kgs) | 5.5 | 6 | 6.5 |
| Type of Mechanical Protection | IP20 | ||
| INTERFACE | |||
| Communication Port | RS-232/RS-485 | ||
| ENVIRONMENT | |||
| Humidity | < 95% RH(Non-condensing) | ||
| Operating Temperature | -20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating | ||
| Product specifications are subject to change without further notice. |
