Description

Output Power Capacity 10 kW / 10 kVA Max Configurable Power 10 kW / 10 kVA Nominal Output Voltage 230V Output Voltage Distortion Less than 3% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Crest Factor 3 : 1 Topology Double Conversion Online Waveform Type Sine wave Output Connections (1) Hard Wire 3-wire (H N + G) (6) IEC 320 C13 IEC 320 C13 (4) IEC 320 C19 IEC 320 C19 (3) IEC Jumpers

• Actual Weight
  246.00 lb(s)

• Connectivity
  Communication Interface: Ethernet, Serial (RS-232), USB

• Contents
  UPS, temperature probe, USB cable, Web/SNMP management card, warranty card, CD with software, documentation CD, installation guide

• General
  Color: Black

  Form Factor: External

• Physical Dimensions
  17″H x 10.35″W x 28.15″D

• Ports/Connectors

  Communications & Management

  Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
  Control panel: Multi-function LCD status and control console
  Audible Alarm: Audible and visible alarms prioritized by severity
  Emergency Power Off (EPO): Yes
  Available SmartSlot Interface Quantity: 1

• Power
  Battery Run Time (max): 3.80 minute(s)

  Power Provided: 10 kW

  Surge Suppression: Standard

• Power Notes Output

  Output power capacity: 10.0 KWatts / 10.0 kVA
  Max Configurable Power (Watts): 10.0 KWatts / 10.0 kVA
  Nominal Output Voltage: 230V
  Output Voltage Distortion: Less than 2%
  Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  Other Output Voltages: 220, 240
  Load Crest Factor: 3 : 1
  Topology: Double Conversion Online
  Waveform type: Sine wave

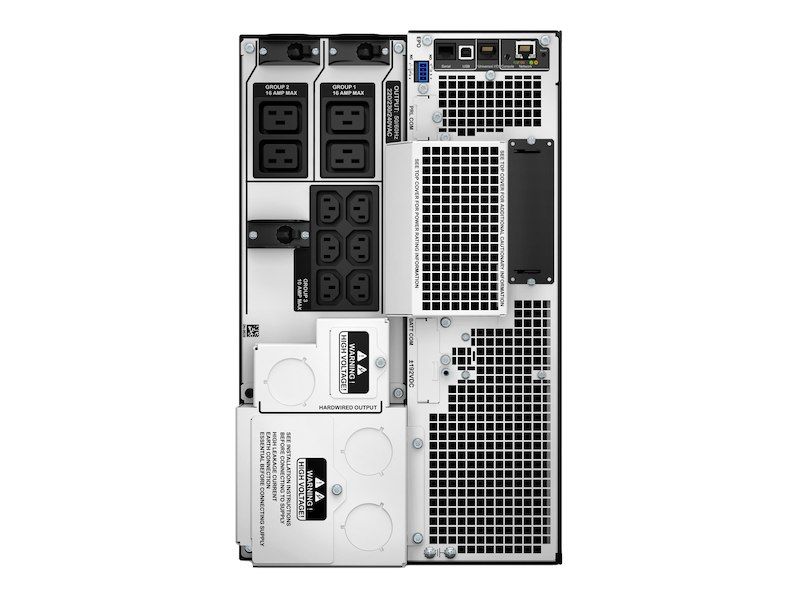

  Output Connections:
  (6) IEC 320 C13 (Battery Backup)
  (4) IEC 320 C19 (Battery Backup)
  (1) Hard Wire 3-wire (H N + G) (Battery Backup)
  (3) IEC Jumpers (Battery Backup)
  Bypass: Internal Bypass (Automatic and Manual)



• Input

  Nominal Input Voltage: 230V, 400V 3PH
  Input frequency: 40 – 70 Hz (auto sensing)
  Input Connections: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
  Input voltage range for main operations: 160 – 275V
  Input voltage adjustable range for mains operation: 100 – 275 (half load), 173 – 476 (half load)V
  Other Input Voltages: 220, 240, 380, 415



• Batteries & Runtime

  Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  Typical recharge time: 1.5hour(s)
  Replacement Battery: APCRBC140
  Expected Battery Life (years): 3 – 5
  RBC Quantity: 2

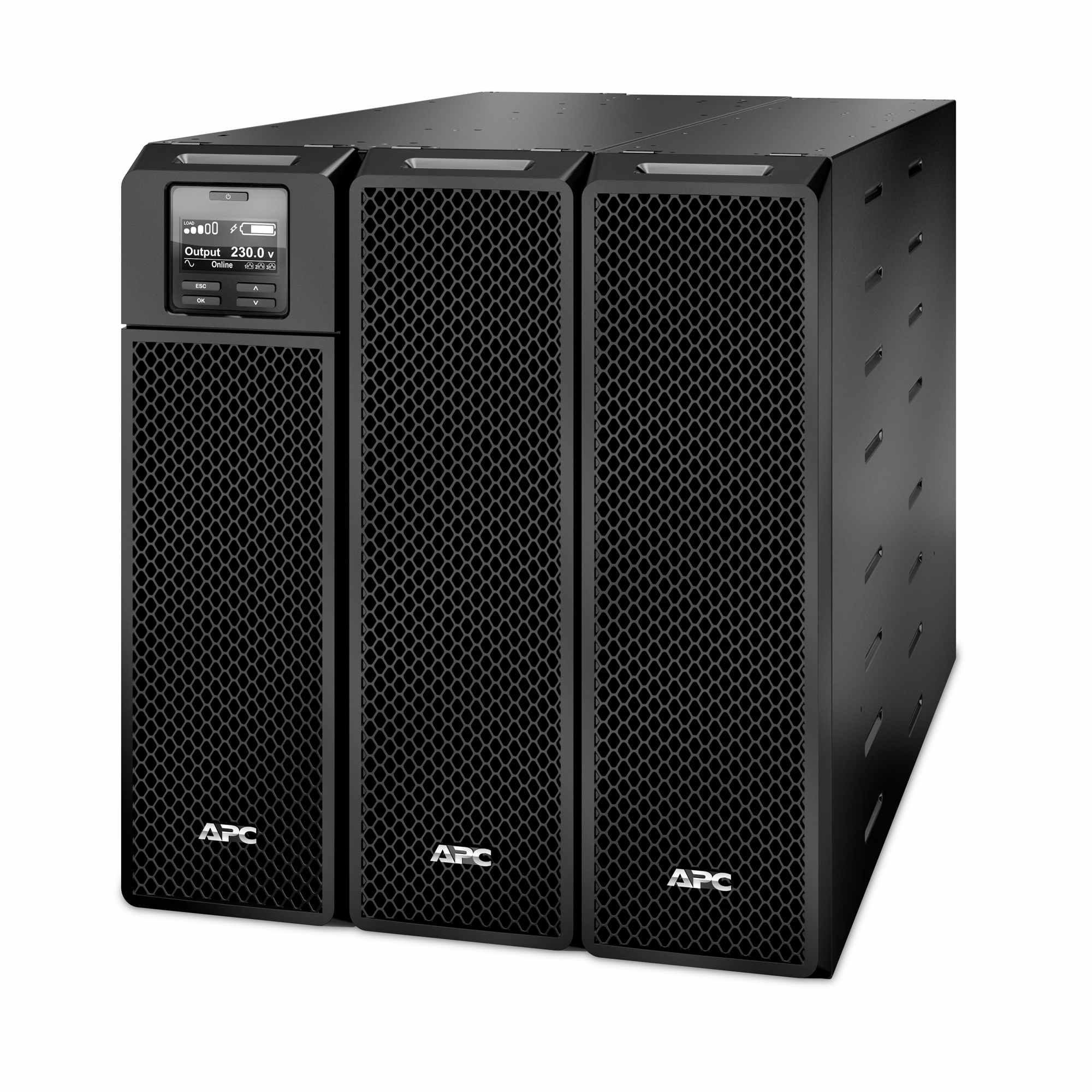

  Extendable Run Time: 1



• Surge Protection

  Surge energy rating: 480Joules

  Operating Environment: 32 – 104 °F ( 0 – 40 °C )
  Operating Relative Humidity: 0 – 95 %
  Operating Elevation: 0-10000ft ( 0-3000meters )
  Storage Temperature: -15 – 45 °C
  Storage Relative Humidity: 0 – 95% non-condensing %
  Storage Elevation: 0-50000ft ( 0-15000meters )
  Audible noise at 1 meter from surface of unit: 55.0dBA
  Online thermal dissipation: 1947.0BTU/hr
  Protection Class: IP 20

• Standards
  Compliant Standards: CE, EAC, EN 62040-1, EN 62040-2, Energy Star, IEC 62040-1, IEC 62040-2, IP20, IRAM, RCM, REACH, RoHS, VDE
