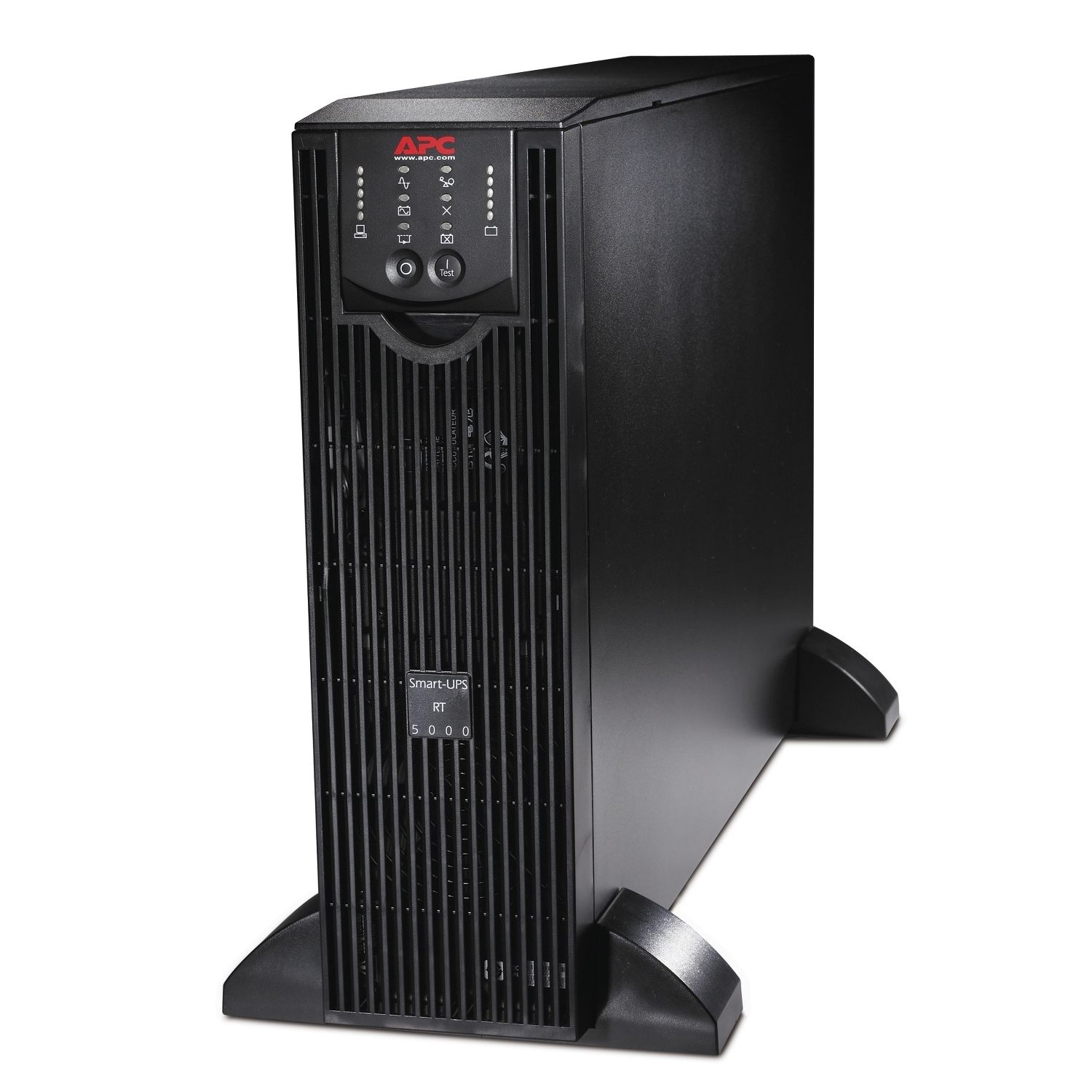

APC Smart-UPS RT 5000VA 230V
₨368,000.00
or 4 interest-free installments by Afterpay.
SURTD5000XLI
High density, double-conversion on-line power protection with scalable runtime
Guaranteed safe checkout
Free Delivery 30 Day Trial Free Returns
Need Help? Call Us +1 255 854 55 26
Monday - Friday 9:00 - 17:00
Monday - Friday 9:00 - 17:00
Description
Description
Description
Output
| Output Power Capacity |
3500 Watts / 5000 VA
|
|
|---|---|---|
| Max Configurable Power (Watts) |
3500 Watts / 5000 VA
|
|
| Nominal Output Voltage |
230V
|
|
| Output Voltage Note |
Configurable for 220 : 230 or 240 nominal output voltage
|
|
| Output Voltage Distortion |
Less than 3%
|
|
| Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
|
|
| Other Output Voltages |
220, 240V
|
|
| Crest Factor |
3 : 1
|
|
|
Double Conversion Online
|
||
| Waveform Type |
Sine wave
|
|
| Output Connections |
(2) IEC 320 C19 (Battery Backup) , (4) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup)
|
|
| Bypass |
Internal Bypass (Automatic and Manual)
|
Input
| Nominal Input Voltage |
230V
|
|
|---|---|---|
| Input Frequency |
50/60 Hz +/- 5 Hz (auto sensing)
|
|
| Input Connections |
Hard Wire 3-wire
|
|
| Input voltage range for main operations |
160 – 280 V
|
|
| Input voltage adjustable range for mains operation |
100 – 280 (half load)V
|
|
| Other Input Voltages |
220 , 240
|
Batteries & Runtime
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
|
|---|---|---|
| Included Battery Modules |
2
|
|
| Typical recharge time |
2.5 hour(s)
|
|
| Replacement Battery |
APCRBC140
|
|
| RBC Quantity |
1
|
Communications & Management
| Interface Port(s) |
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot
|
|
|---|---|---|
| Pre-Installed SmartSlot™ Cards |
AP9631
|
|
| Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
|
|
| Audible Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
| Emergency Power Off (EPO) |
Yes
|
| Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|---|
Physical
| Maximum Height |
432.0 mm
|
|
|---|---|---|
| Maximum Width |
130.0 mm
|
|
| Maximum Depth |
660.0 mm
|
|
| Rack Height |
3 U
|
|
| Net Weight |
54.43 kg
|
|
| Shipping Weight |
63.64 kg
|
|
| Shipping Height |
347.0 mm
|
|
| Shipping Width |
603.0 mm
|
|
| Shipping Depth |
980.0 mm
|
|
| Master Carton Units |
1.0
|
|
| Color |
Black
|
|
| Units per Pallet |
6.0
|
| Operating Environment |
0 – 40 °C
|
|
|---|---|---|
| Operating Relative Humidity |
0 – 95% non-condensing %
|
|
| Operating Elevation |
0-3000 meters
|
|
| Storage Temperature |
-15 – 45 °C
|
|
| Storage Relative Humidity |
0 – 95% non-condensing %
|
|
| Storage Elevation |
0-15000 meters
|
|
| Audible noise at 1 meter from surface of unit |
55.000 dB
|
|
| Online Thermal Dissipation |
1057.000 BTU/hr
|
|
| Protection Class |
IP 20
|
| Approvals |
C-tick , CE , EN 50091-1 , EN 50091-2 , EN 55022 Class A , EN 60950 , EN 61000-3-2 , GOST , UL 1778 , VDE
|
|
|---|---|---|
| Standard warranty |
2 years repair or replace , optional extended warranties available , optional on-site warranties available
|
| RoHS |
Compliant
|
|---|
